01 / REAL PROJECTPORTFOLIO
Good work.
In every detail.
Explore real waterproofing work, the installation process and finished roof details.
Photographs supplied from Planus Roofing projects and organised below by stage of work.
PROJECT PHOTOGRAPHY
From preparation.
To finish.
Select any photograph to view the work at a larger size.
01 / PROJECT STAGE
Preparation
Substrate preparation and primer before the waterproofing build-up.
02 / PROJECT STAGE

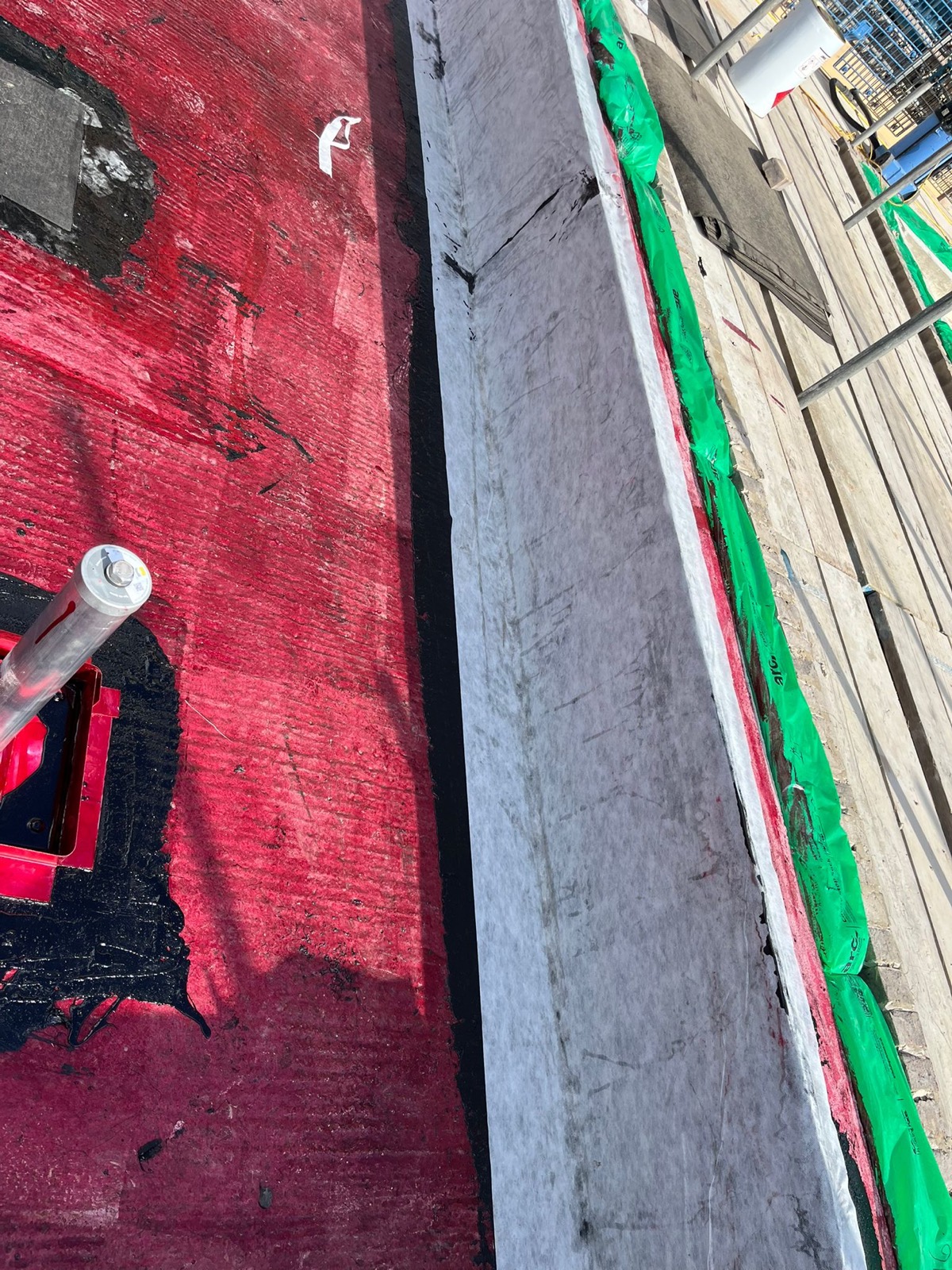

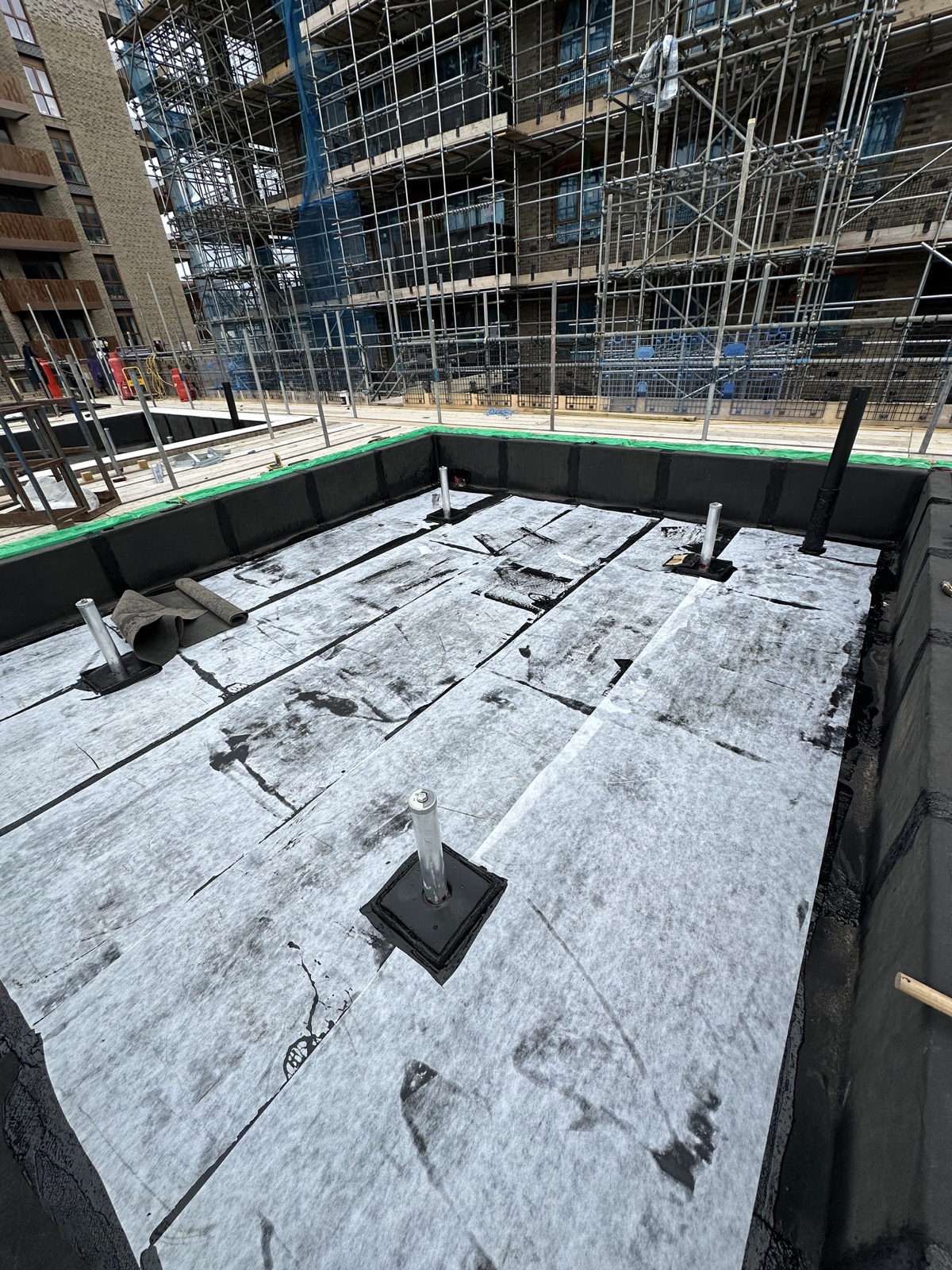

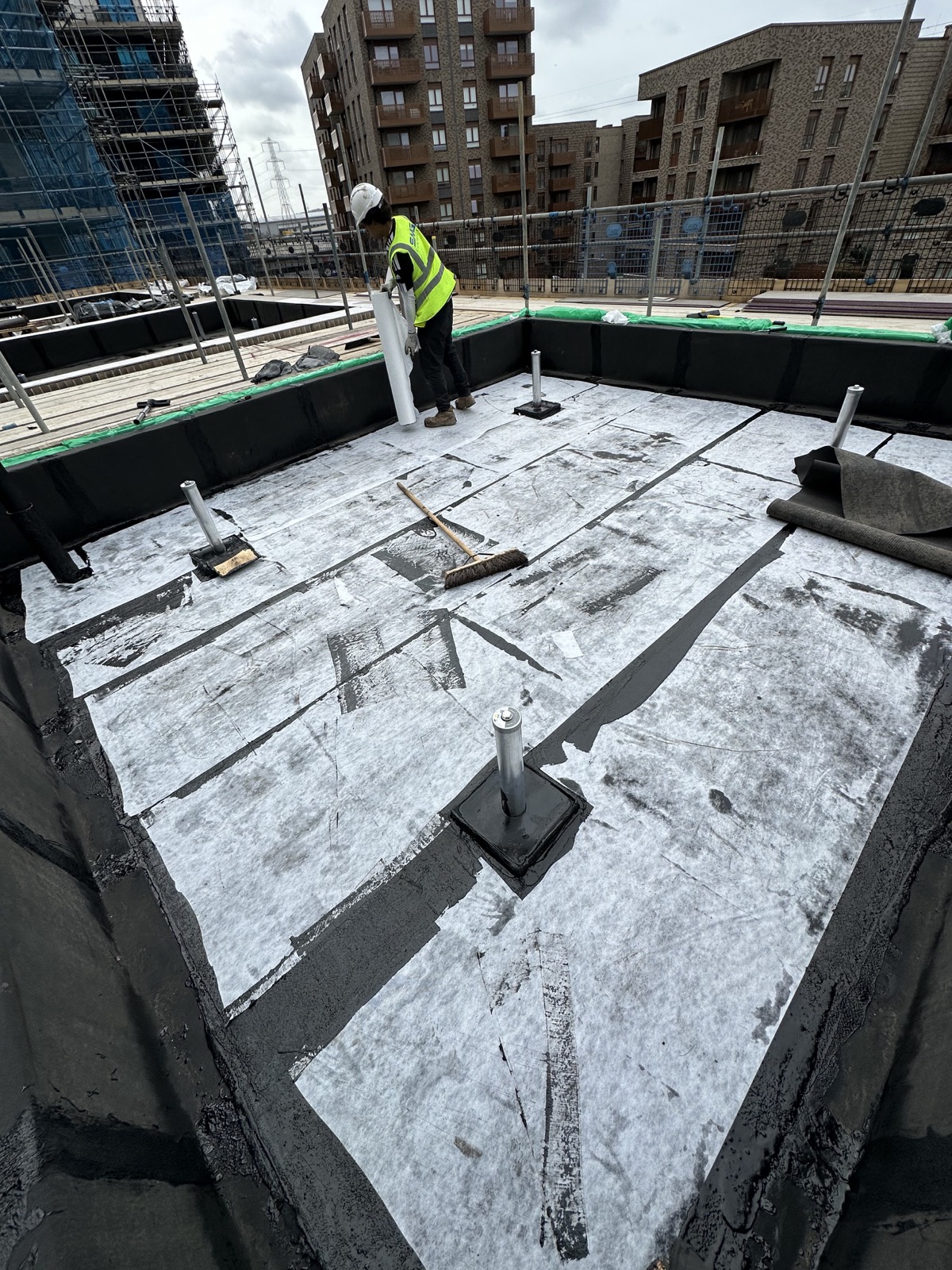

Reinforcement & detailing
Fleece reinforcement formed across the flat area, upstands and penetrations.
03 / PROJECT STAGE

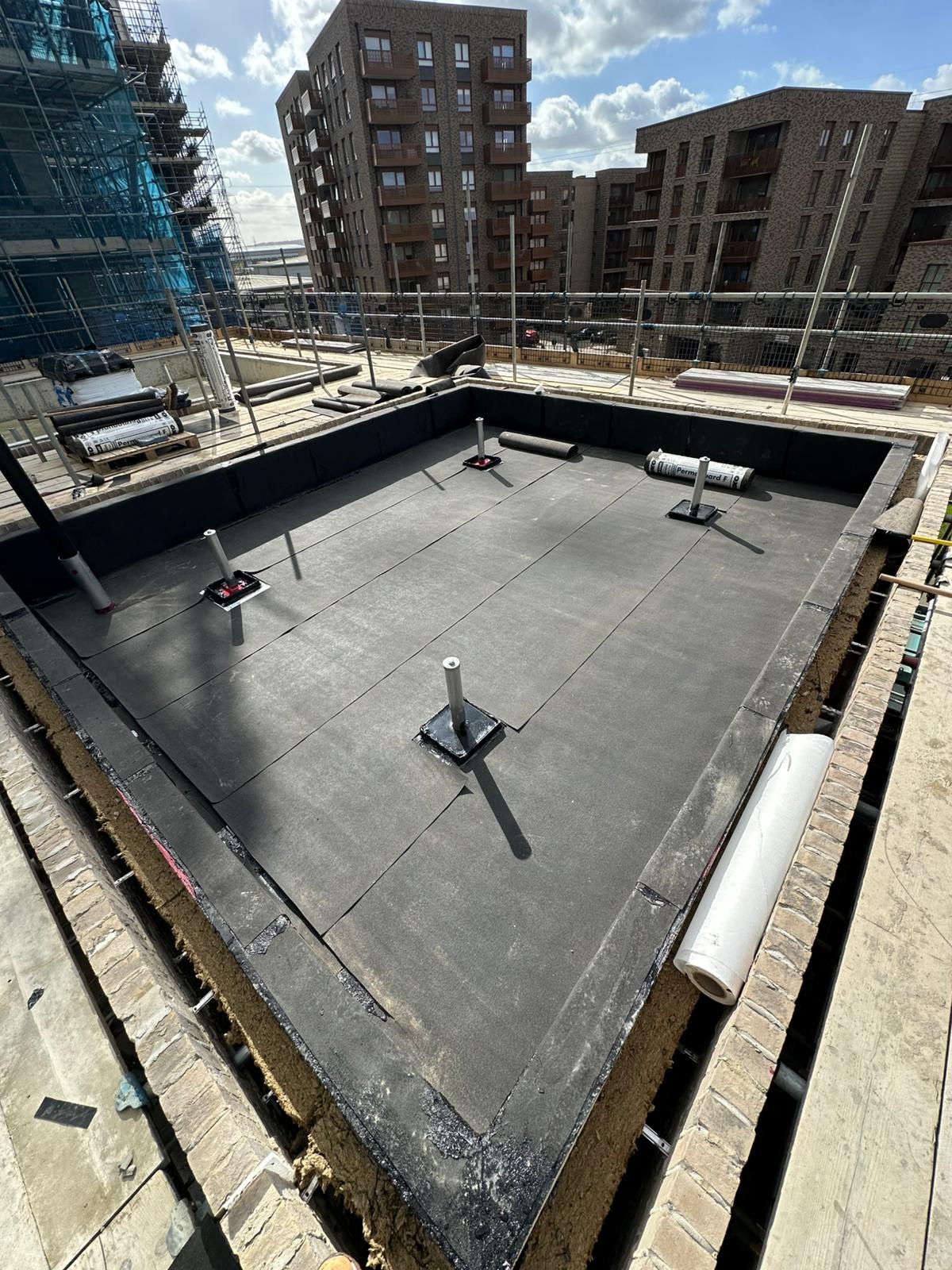

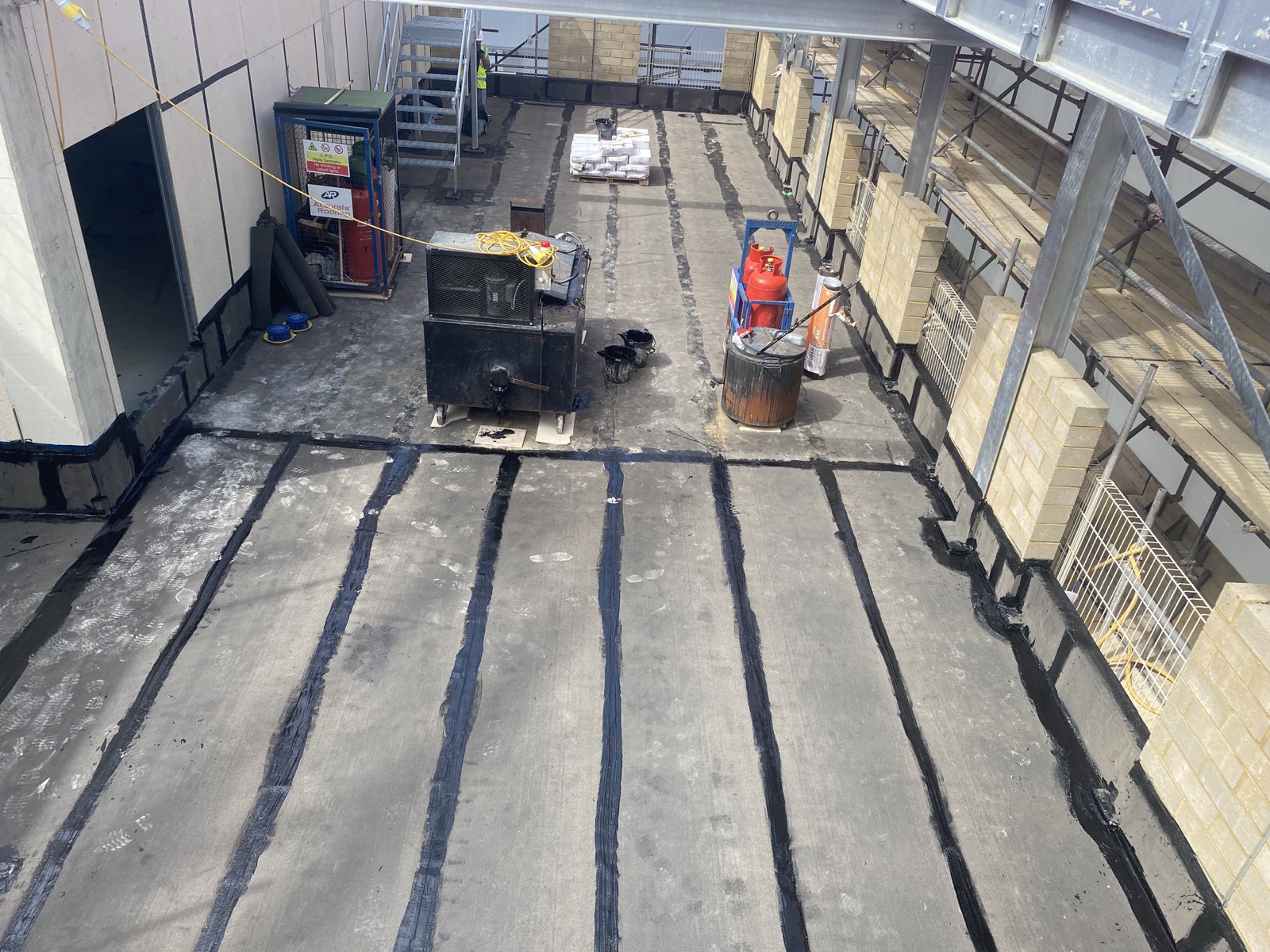

Waterproofing
Membrane and hot melt waterproofing during application and after completion.
04 / PROJECT STAGE

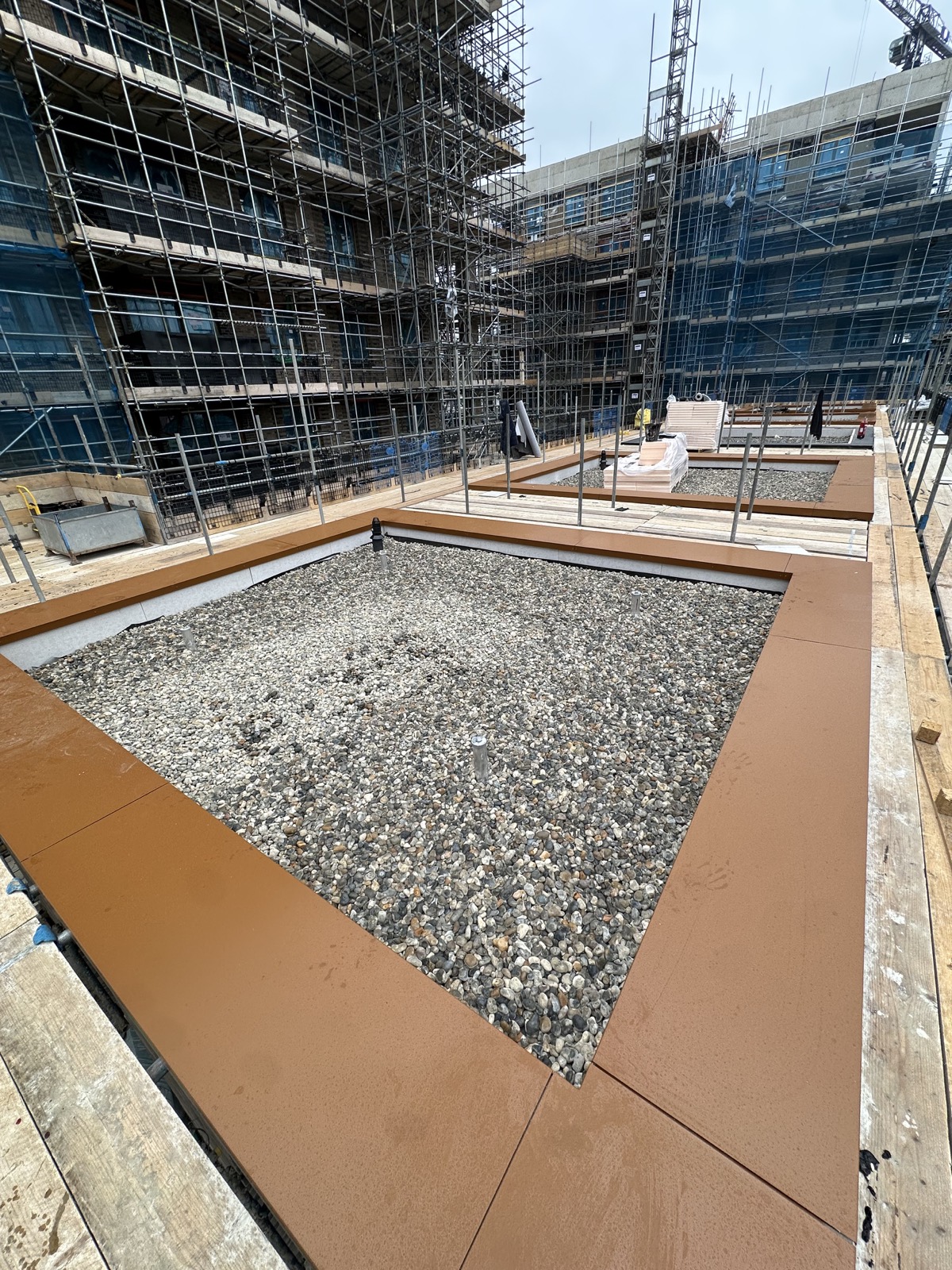

Insulation & finish
Insulation installation followed by the protected stone ballast finish.
05 / PROJECT STAGE

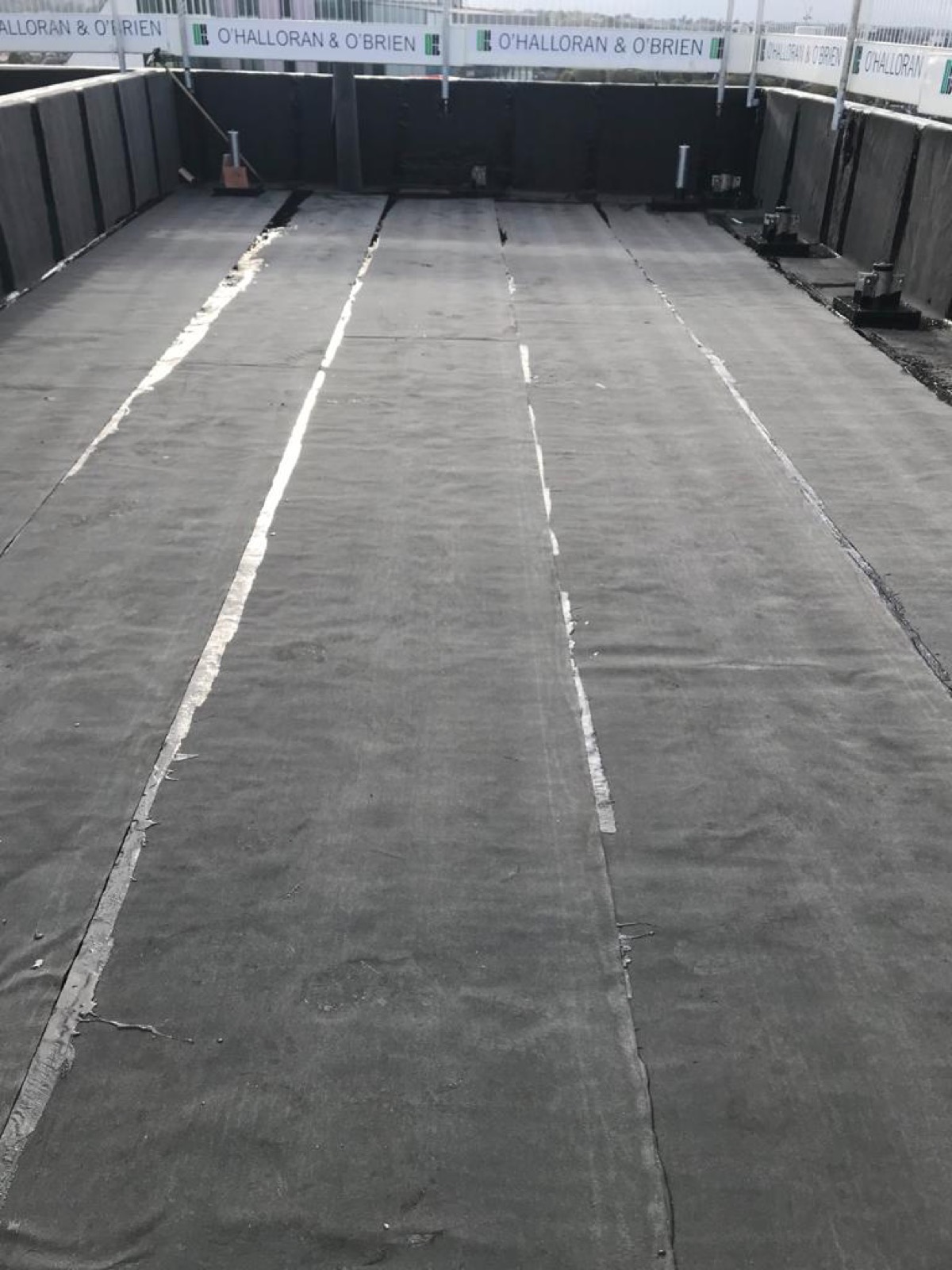

Further site work
Additional flat roof, parapet and main roof waterproofing photographs.
